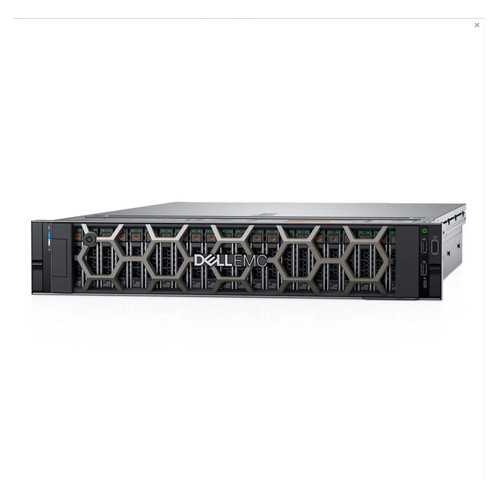

Break the barriers of conventional storage with the Dell PowerEdge R740xd. With a 2U design, its 24 SFF bays and 4 LFF bays set a new benchmark. Perfect for enterprises with an insatiable thirst for speed. Dual processors ensure that performance never falters. Embark on an unparalleled storage adventure.
This Dell PowerEdge R740xd SFF comes equipped with 2x Platinum 8160 processors, which run at a speed of 2.10 GHz and has 24 cores per processor. This unit also comes with (12x64GB) DDR4 RAM, 24x 2TB SSD storage drives and an H740P PCI RAID card. Included with this rackmount server is a rail kit, and a Standard 90 Day Warranty. Order yours today!
PCSP Standard 1 Year full coverage of parts, labor, and shipping.
Installing this unit at a commercial location?
This unit is eligible for on-site service with PCSP Securit. Click here to learn more
Model
- Brand:
- Dell
- Series:
- PowerEdge
- Model Number:
- R740xd
- Form Factor:
- SFF
- Chassis:
- Dell PowerEdge R740xd SFF
- Power Supply:
- 2x 750W/1100W/1600W/2000W
- Drive Bays:
- 28B - 24x 2.5", 4x 3.5"
- Server Type:
- Rackmount Server
Quick Info
- Shipping:
- Free shipping
- Colors:
- grey/black
Processor
- Processor:
- 2x Intel Xeon Platinum 8160 (2.10 GHz) 24C
- Socket:
- LGA3647
- Processors Installed:
- 2 processors installed
- Processor Speed:
- 2.10 GHz
- Processor Cores:
- 24 cores
- Heatsinks Installed:
- 2 heatsinks included
- Maximum CPUs:
- 2
- Number of Threads:
- 48 threads
- Hyper Threading:
- Yes
- CPU Cache:
- 33 MB L3 Cache
Memory
- Memory (RAM):
- 768GB
- RAM Type (DDR):
- DDR4
- Maximum RAM:
- 3TB
- DIMM Slots:
- 24 DIMM slots
- RAM Type (PC):
- PC4
- RAM ECC:
- PC4 R
- RAM Speed (MHz):
- 2666 MHz
- RAM Speed (MB/s):
- PC 21300 (2666)
Storage
- Storage:
- 24x 2TB SSD
- SSD:
- 24x 2TB SSD
- Hard Drive Trays:
- 24 trays included
- 2.5" Drive Bays:
- 24
- 3.5" Drive Bays:
- 4
- HDD:
- none
- Transfer Rate:
- 6GB/s
RAID Controller
- RAID Controller:
- H740P PCI
Networking
- Network Interface:
- 4x RJ-45
- RJ45:
- 4x RJ-45
- Network Controller:
- X710 10GBps - 2x 10GBps SFP
Optical Drive
- Optical Drive:
- none
Software
- Operating System:
- Not Included
Accessories
- Rail Kit:
- Included
- Graphics Card:
- none
- Bezel:
- Not included
Dimensions & Weight
- Length:
- 19.03 in.
- Width:
- 17.08 in.
- Height:
- 3.42 in.
- Weight:
- 115.10 LBS.
