Refurbished HP Z440 Workstation

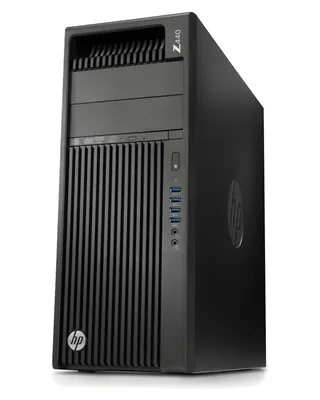

HP Z440 Workstation

The HP Z440 Workstation is a great mid-level workstation option for individuals looking for high performance when using resource intensive software and applications. Professionals in graphic design, finance analysis, CAD design, 3D design, 2D design, video editing, music production and gamers alike can utilize the Z440’s power. HP’s innovative technology paired with a powerful graphics card from Nvidia will get your tasks done with speed and efficiency. Highly customizable, the Z440 workstation can be brought to new heights when equipped with up to 128 GB of RAM with its 8 DIMM slots. This is a great system for anyone looking for near top-end performance without breaking the bank.


Performance

The processor options of the Z440 are bountiful, and the processor you choose will highly affect the performance and the cost of the workstation configuration. The Intel C612 chipset in the Z440 chassis supports both the Intel Xeon 1600 series (v3 and v4) and the 2600 series. The 1600 series will get you up to 8 cores whereas the 2600 series will get all the way up to 14 cores. Speeds on these processors vary anywhere from 2.6 Ghz up to 3.7 Ghz, and some support Turbo Boost Technology and Hyper-threading if you want to push it to the limit. It’s up to you to decide which processor best fits your needs.

Memory

The Z440 is a single processor unit with 8 DIMM slots, this means when maxed out with 16GB RAM sticks, the unit can support up to a whopping 128 GB of RAM. The unit only supports the newer, more powerful DDR4 (PC4) RAM. DDR3 is not supported. Memory speeds top out at 2400MHz when equipped with an E5-2600 v4 processor. PCSP will pair RAM sticks in their most common configuration to save the customer on cost while also leaving room for further expansion. 8GB configurations will use two 4GB RAM sticks, 16GB configurations will use two 8GB sticks and so on.

Storage

The Z440 comes standard with two internal 3.5” drive bays for Hard Disk Drives or Solid State Drives. PCSP only uses these first two drive bays for HDD and SSD. There is a third 2.5” drive bay for SSD drives only, as well as two 5.25” bays for optical drives which can be converted to 3.5” bays with adapters and inserts. The extra 2.5” bay and 5.25” converted bays are optional and would need to be installed by the end user. PCSP will use SATA hard drives for machines ordered with HDD, but supported drive types for the Z440 include SATA, SAS, Hybrid HDD and SSD. There are also 6 PCI slots on the chassis for expansion and increased I/O range.

Management

This workstation supports both Windows and Linux operating systems. PCSP is a licensed Microsoft Refurbisher and only installs Windows Pro and Home operating systems. When a machine is purchased with Windows, PCSP will install the OS free of charge. Per our agreement with Microsoft, we are not able to send out install media and a product key, we must install the OS ourselves.



HP Z440 Tower Workstation - Specifications

Processor

  • Intel® Xeon® processor E5-1600 v3 and E5-1600 v4 product families
  • Intel® Xeon® processor E5-2600 v3 and E5-2600 v4 product families

Operating System

  • Windows 10 Pro 64
  • Windows 10 Home 64

Chipset

Intel® C612 Chipset


Memory

Maximum memory: 128 GB
8 DIMM
Transfer rates up to 2400 MT/s
Only registered memory is supported:

  • DDR4-2400 ECC registered SDRAM
  • DDR4-2133 ECC Registered SDRAM

Controllers

Drive Controllers:

  • Integrated SATA 6.0 Gb/s
  • LSI MegaRAID® 9270-8i SAS 6.0 Gb/s ROC RAID Card and iBBU09 Battery Backup Unit (optional)
  • LSI 9217-4i4e 8-port SAS 6.0 Gb/s RAID (optional)
  • Factory integrated RAID available for SATA/SAS drives (RAID 0, 0 Data, 1, and 10)
  • Factory integrated RAID available for PCIe SSDs (RAID 0 Data)

I/O Controllers:

  • HP IEEE 1394b FireWire PCIe (optional)
  • HP Thunderbolt™ 2 PCIe 1-port I/O Card (optional)

Storage

Internal Storage:

  • 300 GB up to 600 GB SAS (15000 rpm)
  • 300 GB up to 1.2 TB SAS (10000 rpm)
  • 500 GB up to 4 TB SATA (7200 rpm)
  • 500 GB SATA SED (7200 rpm)
  • 128 GB up to 1 TB SATA SSD
  • 512 GB SATA SED SSD
  • 1 TB SATA SSHD
  • 256 GB up to 512 GB HP Z Turbo Drive (PCIe SSD)
  • 256 GB up to 1 TB HP Z Turbo Drive G2 (PCIe SSD)
  • 512 GB (2 x 256 GB) up to 2 TB (4 x 512 GB) HP Z Turbo Quad Pro (PCIe SSD)

Optical Storage: (optional)

  • Slim SATA DVD-ROM
  • Slim SATA SuperMulti DVD writer
  • Slim SATA BDXL Blu-ray writer

Drive Bays

Internal:

  • Two 3.5”

External:

  • Two 5.25”
  • One slim ODD

Graphics Card

  • NVIDIA® NVS™ 295 (256 MB)
  • NVIDIA® NVS™ 310 (1 GB)
  • NVIDIA® NVS™ 315 (1 GB)
  • NVIDIA® NVS™ 510 (2 GB)
  • NVIDIA® Quadro® K420 (2 GB)
  • NVIDIA® Quadro® K600 (1 GB)
  • NVIDIA® Quadro® 600 (1 GB)
  • NVIDIA® Quadro® K620 (2 GB)
  • NVIDIA® Quadro® M2000 (4 GB)
  • NVIDIA® Quadro® K2000 (2 GB)
  • NVIDIA® Quadro® K2200 (4 GB)
  • NVIDIA® Quadro® K1200 (4 GB)
  • NVIDIA® Quadro® K4000 (3 GB)
  • NVIDIA® Quadro® M5000 (8 GB)
  • NVIDIA® Quadro® M4000 (8 GB)
  • NVIDIA® Quadro® K4200 (4 GB)
  • NVIDIA® Quadro® K5000 (4 GB)
  • NVIDIA® Quadro® 5000 (2.5 GB)
  • NVIDIA® Quadro® K5200 (8 GB)
  • NVIDIA® Quadro® K6000 (12 GB)

Audio

Integrated Realtek HD ALC221

Communications

  • Integrated Intel® I218LM PCIe GbE
  • Intel® I210-T1 PCIe GbE (optional)
  • HP X540-T2 10 GbE Dual Port Adapter (optional)
  • HP X520 10 GbE Dual Port Adapter (optional)
  • HP 10 GbE SFP+SR Transceiver (optional)
  • HP 361T PCIe dual-port gigabit (optional)
  • Intel® 7260 802.11 a/b/g/n PCIe WLAN (optional)
  • Intel® 8260 802.11 a/b/g/n/ac with BlueTooth® 4.2 PCIe NIC (optional)

Expansion Slots

  • Slot 1 (top): PCI Express Gen2 x1 with open-ended connector*, (FH, HL)
  • Slot 2: PCI Express Gen3 x16 (FH, FL) (with extender)
  • Slot 3: PCI Express Gen2 x4 with open-ended connector* (FH, FL) (with extender)
  • Slot 4: PCI Express Gen3 x8 with open-ended connector* (FH, FL) (with extender)
  • Slot 5: PCI Express Gen3 x16 (FH, FL) (with extender)
  • Slot 6: PCI 32bit/33MHz (FH, FL) (with extender)

* Open-ended connector allows a greater bandwidth (e.g. x16) card to be installed physically into a lower bandwidth connector/slot.

Ports and Connectors

Front:

  • 4 USB 3.0
  • 1 microphone
  • 1 headset

Rear:

  • 4 USB 3.0
  • 2 USB 2.0
  • 2 PS/2
  • 1 RJ-45
  • 1 audio line in
  • 1 audio line out

Internal:

  • 1 USB 2.0
  • 1 USB 3.0

Input Devices

  • HP PS/2 Keyboard
  • HP USB Keyboard
  • HP USB SmartCard Keyboard
  • HP Wireless Keyboard and Mouse
  • HP PS/2 Mouse
  • HP USB Optical Mouse
  • HP USB 1000 dpi Laser Mouse
  • HP USB Optical 3-Button Mouse
  • HP SpacePilot Pro 3D USB Intelligent Controller
  • 3Dconnexion CADMouse

Security

  • HP Solenoid Hood Lock & Hood Sensor
  • HP Business PC Security Lock Kit
  • TPM 1.2 certified

Power

  • 525 W 85% efficient, wide-ranging, active PFC
  • 700 W 90% efficient, wide-ranging, active PFC

Chassis

Tower

H: 17 in (43.2 cm)
W: 6.65 in (16.9 cm)
D: 17.5 in (44.5 cm)

Weight

24.3 lb (11 kg)
Note: exact weight depends upon configuration

Environmental Specifications

Low halogen

Energy Efficiency Compliance

ENERGY STAR® certified and EPEAT® registered configurations available

Monitors

All HP Z Displays and HP DreamColor Displays are supported.
