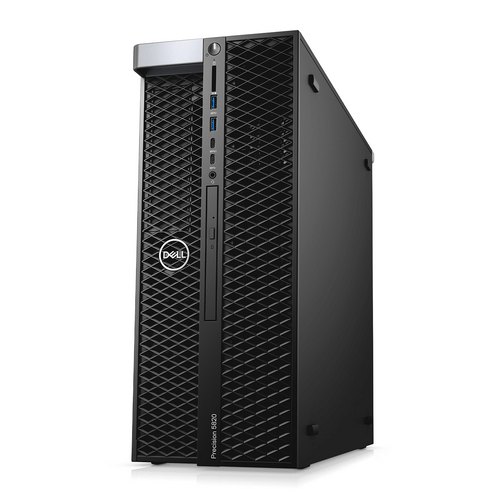

Introducing the Dell Precision T5820 Tower Workstation – where innovation meets robust performance. Powered by Intel® Xeon® processors, it's tailored for speed and efficiency. Whether it's 3D rendering or complex data tasks, it delivers with clarity and speed. Expandability and easy access are its core, ensuring a reliable workstation experience for years to come.
This Dell Precision T5820 Tower comes equipped with 1x W-2145 processor, which runs at a speed of 3.70 GHz and has 8 cores. This unit also comes with (4x32GB) DDR4 RAM, 1x 2TB HDD, 1x 1TB SSD storage drives and an NVIDIA Quadro P4000 (8GB GDDR5) Graphics card This workstation comes with a Standard 90 Day Warranty. Order yours today!
PCSP Advantage - 1 Year Warranty - full coverage of parts, labor, and shipping
Learn more about your FREE PCSP Advantage warranty here.
Installing this unit at a commercial location?
This unit is eligible for on-site service with PCSP Business Advantage. Click here to learn more.
Model
- Brand:
- Dell
- Series:
- Precision
- Model Number:
- T5820
- Form Factor:
- Tower
- Chassis:
- Dell Precision T5820 Tower Workstation
Quick Info
- Shipping:
- Free shipping
- Power Supply:
- 425W/950W
- Colors:
- Black/Silver
- Package Contents:
- Computer, Power cord
Processor
- Socket:
- LGA2066
- Processor:
- Intel Xeon W-2145 (3.70 GHz) 8C
- Processors Installed:
- 1 processor installed
- Processor Speed:
- 3.70 GHz
- Processor Cores:
- 8 cores
- Heatsinks Installed:
- 1 heatsink included
- Maximum CPUs:
- 1
- Processor Max Speed (Turbo Boost):
- 4.50 GHz
- Number of Threads:
- 16 threads
- Hyper Threading:
- Yes
- CPU Cache:
- 11 MB
Graphics
- Graphics Card:
- NVIDIA Quadro P4000 (8GB GDDR5)
- Graphics Card Memory:
- 8GB GDDR5
- Graphics Coprocessor:
- NVIDIA Quadro
- Graphics Card Memory Type:
- GDDR5
- Graphics Card Clock Speed:
- 1202 MHz
- Graphics Card CUDA Cores:
- 1792
- Graphics Card Video Outputs:
- 4x DisplayPort
Memory
- Memory (RAM):
- 128GB
- Maximum RAM:
- 512GB
- DIMM Slots:
- 8 DIMM Slots
- RAM Type (DDR):
- DDR4
- RAM ECC:
- PC4 R
Storage
- Storage:
- 1x 2TB HDD, 1x 1TB SSD
- HDD:
- 1x 2TB HDD
- SSD:
- 1x 1TB SSD
- Drive Bays:
- 4x 3.5" bays
- Hard Disk Rotational Speed:
- 7.2K
- Transfer Rate:
- 6GB/s
Optical Drive
- Optical Drive:
- none
Software
- Operating System:
- Windows 10 Professional
Display
- Video Ports:
- 4x DisplayPort
- Monitor:
- not included
Connectivity
- RJ45:
- 1x RJ-45
- Bluetooth:
- not included
Front Panel Ports
- Front USB:
- 2x USB 3.1 Gen 1 Type A, 2x USB 3.1 Gen 1 Type C
- Front Audio Ports:
- 1x universal audio jack
- SD Card Reader / Media Bay:
- not included
Back Panel Ports
- Rear USB:
- 6x USB 3.1 Gen1 Type A
- Rear Audio Ports:
- 1x line-out, 1x line-in/microphone
Keyboard & Mouse
- Keyboard:
- not included
- Mouse:
- not included
Dimensions & Weight
- Length:
- 20.40 in.
- Width:
- 6.95 in.
- Height:
- 16.45 in.
- Weight:
- 45.31 LBS.
