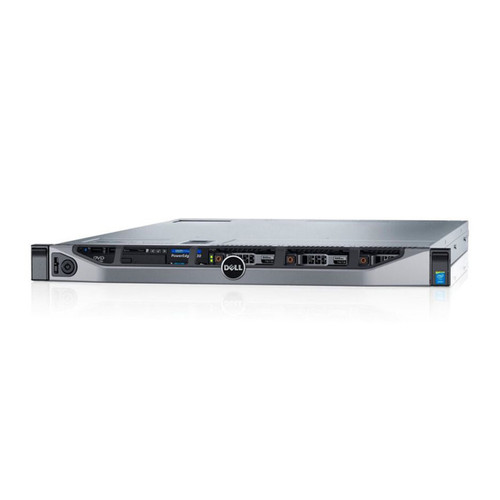

Harness the power of flexibility with the Dell PowerEdge R630 8 Bay. Occupying just 1U, it offers 8 SFF bays for optimized storage. Crafted for performance-intensive tasks from cloud to analytics. Dual processors ensure consistent performance under heavy loads. Experience innovation in a compact design.
This Dell PowerEdge R630 SFF comes equipped with 2x E5-2680 v3 processors, which run at a speed of 2.50 GHz and has 12 cores per processor. This unit also comes with (4x8GB) DDR4 RAM and an H730 Mini Mono 1GB Cache 12GBps RAID card. Included with this rackmount server is a Standard 90 Day Warranty. Order yours today!
PCSP Advantage - 1 Year Warranty - full coverage of parts, labor, and shipping
Learn more about your FREE PCSP Advantage warranty here.
Installing this unit at a commercial location?
This unit is eligible for on-site service with PCSP Business Advantage. Click here to learn more.
Model
- Brand:
- Dell
- Series:
- PowerEdge
- Model Number:
- R630
- Form Factor:
- SFF
- Server Type:
- Rackmount Server
- Chassis:
- Dell PowerEdge R630 SFF
- Drive Bays:
- 8B - 8x 2.5"
- Power Supply:
- 2x 495W/750W/1100W
Quick Info
- Shipping:
- Free shipping
- Colors:
- Silver/Black
Processor
- Heatsinks Installed:
- 2 heatsinks included
- Maximum CPUs:
- 2
- Processor:
- 2x Intel Xeon E5-2680 v3 (2.50 GHz) 12C
- Socket:
- LGA2011-3
- Processors Installed:
- 2 processors installed
- Processor Speed:
- 2.50 GHz
- Processor Cores:
- 12 cores
- Number of Threads:
- 24 threads
- Hyper Threading:
- Yes
- CPU Cache:
- 30 MB Intel® Smart Cache
Memory
- DIMM Slots:
- 24 DIMM slots
- Memory (RAM):
- 32GB
- RAM Type (DDR):
- DDR4
- RAM Type (PC):
- PC4
- RAM ECC:
- PC4 R
- Maximum RAM:
- 1.5TB
Storage
- 2.5" Drive Bays:
- 8
- Storage:
- none
- Hard Drive Trays:
- none
- HDD:
- none
- SSD:
- none
RAID Controller
- RAID Controller:
- H730 Mini Mono 1GB Cache 12GBps
Networking
- Network Interface:
- 2x RJ-45
- Network Controller:
- Dell I350 1GBps - 4x 1GBps RJ45
- RJ45:
- 2x RJ-45
Optical Drive
- Optical Drive:
- none
Software
- Operating System:
- none
Accessories
- Graphics Card:
- none
- Bezel:
- Not included
- Rail Kit:
- Not included
Dimensions & Weight
- Length:
- 29.72 in.
- Width:
- 18.98 in.
- Height:
- 1.68 in.
- Weight:
- 46.62 LBS.
