Cisco Catalyst C9300-48T Switch
High-Density Enterprise Access | 48-Port Gigabit Copper | 480-Gbps Stacking | Data-Only
The Cisco Catalyst C9300-48T is a high-density, stackable enterprise access platform engineered for standard data-only corporate networks and campus deployments. Featuring 48 line-rate 10/100/1000 RJ-45 copper ports and an expandable modular uplink bay, it effortlessly scales connectivity for high-speed workstations, network printers, and traditional IT hardware. Built on the proven UADP 2.0 architecture, this highly resilient switch delivers advanced Layer 3 routing capabilities, multi-layer security protections, and robust investment protection.
Key Technical Features
* Cisco StackWise-480
Supports up to 480 Gbps of stacking bandwidth, enabling a resilient, single-logical-device architecture across up to 8 switches simultaneously.
* High-Density Data Performance
Equipped with 48 dedicated Gigabit Ethernet ports optimized for high-density, high-volume client wire connections that do not require PoE.
* Flexible Modular Uplinks
Features a modular uplink slot accepting optional 1G, 10G, 25G, or 40G network modules to seamlessly scale your uplink backplanes.
* StackPower Resiliency
Leverage Cisco StackPower to pool and share power budgets across your local switch stack, reinforcing protection against sudden PSU hardware failure.
* Advanced Perimeter Security
Utilizes Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, and TrustSec architectures to defend localized enterprise traffic lanes.
* Container Application Hosting
An onboard x86 CPU structure with 8GB RAM allows engineering teams to host lightweight native monitoring, management, or security containers.
Specifications
| Product SKU | C9300-48T |
| Total Local Ports | 48x 10/100/1000 Ethernet Ports (Data-Only) |
| Power Over Ethernet | None (Non-PoE) |
| Switching Capacity | 176 Gbps Standalone / 656 Gbps with Stacking enabled |
| Forwarding Rate | 130.95 Mpps Standalone / 488.09 Mpps with Stacking enabled |
| Default Power Supply | PWR-C1-350WAC (Supports dual hot-swap redundant configurations) |

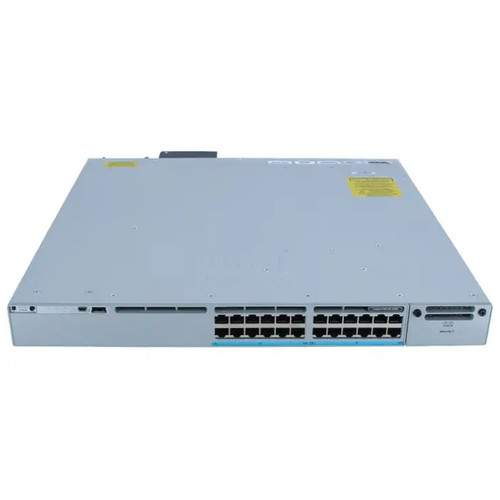

*All images are stock photos. Actual product will vary depending on the options chosen.
