Due to limited supply, custom builds for this unit
must include at least: processor, memory.

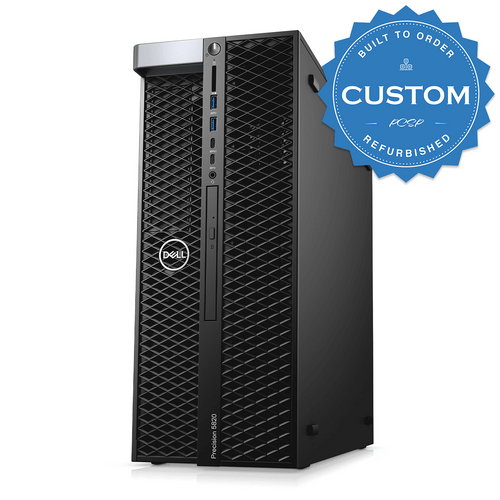

Looking for a Dell Precision T5820 Workstation
built exactly how you want it? Well, you've come to the right place. PCSP will
build your Precision T5820 with the exact components you want (or don't want)
and then ship it to you usually within the same business day. Simply select the
components you want from the dropdown and click add to cart. The component
dropdowns only populate with the components we have in stock, which changes
weekly, daily, and even hourly. See below our full list of processors, hard drives,
ram configurations and more available for the Dell Precision T5820. For more
technical details on the T5800, visit our Dell
Precision T5820 Workstation Page.
This unit accepts Core Processors only, for the T5820 Build Your Own listing that supports Xeon Processors, click here.
PCSP Advantage - 1 Year Warranty - full coverage of parts, labor, and shipping
Learn more about your FREE PCSP Advantage warranty here.
Installing this unit at a commercial location?
This unit is eligible for on-site service with PCSP Business Advantage. Click here to learn more.
Model
- Brand:
- Dell
- Series:
- Precision
- Model Number:
- T5820
- Form Factor:
- Tower
- Chassis:
- Dell Precision T5820 Tower Workstation (with FlexBay)
Quick Info
- Shipping:
- Free shipping
- Power Supply:
- 425W/950W
- Special Features:
- Includes USB Bluetooth Wifi Dongle
- Package Contents:
- Computer, Power cord, USB Bluetooth Wifi Dongle
- Colors:
- Black/Silver
Processor
- Processor:
- Choose your own
- Socket:
- LGA2066
- Maximum CPUs:
- 1
- Processors Installed:
- none
- Heatsinks Installed:
- 1 heatsink included
Graphics
- Graphics Card:
- Choose your own
Memory
- Maximum RAM:
- 128GB
- DIMM Slots:
- 8 DIMM Slots
- RAM Type (DDR):
- DDR4
- RAM ECC:
- PC4 U
Storage
- Drive Bays:
- 2x 3.5" bays, 2x M.2 slots
- Storage:
- Choose your own
Optical Drive
- Optical Drive:
- optional
Software
- Operating System:
- Choose your own
Display
- Monitor:
- not included
- Video Ports:
- Video card dependent
Connectivity
- RJ45:
- 1x RJ-45
- Bluetooth:
- USB Bluetooth Adapter
Front Panel Ports
- Front USB:
- 2x USB 3.1 Gen 1 Type A, 2x USB 3.1 Gen 1 Type C
- Front Audio Ports:
- 1x universal audio jack
- SD Card Reader / Media Bay:
- not included
Back Panel Ports
- Rear USB:
- 6x USB 3.1 Gen1 Type A
- Rear Audio Ports:
- 1x line-out, 1x line-in/microphone
Keyboard & Mouse
- Keyboard:
- not included
- Mouse:
- not included
Dimensions & Weight
- Length:
- 20.40 in.
- Width:
- 6.95 in.
- Height:
- 16.45 in.
- Weight:
- 38.20 LBS.
