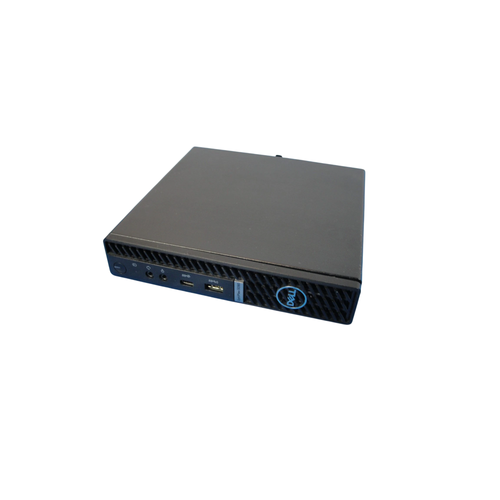

Dell - OptiPlex 5090 - Micro Barebone - External PSU - 1x Heatsink - (5090 Micro)
- SKU:
- STD 509014
- Availability:
- out of stock
- Condition:
- Refurbished
- Shipping:
- Free Shipping (USA)
- Chassis:
- Dell OptiPlex 5090 Micro
Dell OptiPlex 5090 Micro Mini PC
The Dell OptiPlex 5090 Micro is a compact and efficient business-class mini PC designed for space-saving deployments and reliable performance. This barebone configuration includes the chassis, cooling, and external power supply, making it a great base for a custom office or embedded system build.
Platform: Dell OptiPlex 5090 Micro
Configuration: Barebone / Mini PC
Heatsink: 1x Heatsink Installed
Power Supply: External Power Adapter Included
CPU: Not Included
Memory: Not Included
Graphics: Integrated Graphics Supported (CPU Dependent)
Storage: Not Included
Form Factor: Micro / Ultra Small Form Factor
Key Features
- Ultra-compact Dell OptiPlex Micro platform
- External PSU for efficient power usage
- Includes heatsink for CPU installation
- Space-saving design ideal for tight environments
- Flexible upgrade path for RAM and storage
- Ideal for office, kiosk, and embedded applications
Included
- Dell OptiPlex 5090 Micro unit
- 1x heatsink
- External power adapter
Important Notes
- No CPU, RAM, or storage included
- Requires compatible processor with integrated graphics
- System requires additional components to be operational
Model: OptiPlex 5090 Micro
PCSP Standard 1 Year full coverage of parts, labor, and shipping.
Installing this unit at a commercial location?
This unit is eligible for on-site service with PCSP Securit. Click here to learn more
Model
- Brand:
- Dell
- Series:
- OptiPlex
- Model Number:
- D14U
- Form Factor:
- Micro
- Chassis:
- Dell OptiPlex 5090 Micro
Quick Info
- Shipping:
- Free Shipping
- Power Supply:
- External
Processor
- Heatsinks Installed:
- 1
- Maximum CPUs:
- 1
- Socket:
- LGA1200
Graphics
Memory
- DIMM Slots:
- 2
- RAM Type (DDR):
- DDR4
- RAM ECC:
- Load Reduced Registered ECC
- Maximum RAM:
- 64GB
Storage
Optical Drive
Software
Display
- Video Ports:
- 2x Displayport
Connectivity
- RJ45:
- 1x RJ-45
Front Panel Ports
- Front USB:
- 1x USB 3.2 1x USB-C
- Front Audio Ports:
- 1x microphone, 1x headphone
- SD Card Reader / Media Bay:
- not included
Back Panel Ports
- Rear USB:
- 4x 3.1 USB
Keyboard & Mouse
Dimensions & Weight
- Length:
- 7.00 in.
- Width:
- 1.50 in.
- Height:
- 7.20 in.
- Weight:
- 3.00 LBS.
